Product Summary:

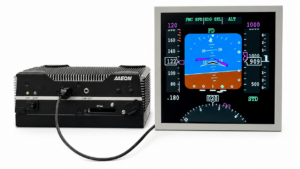

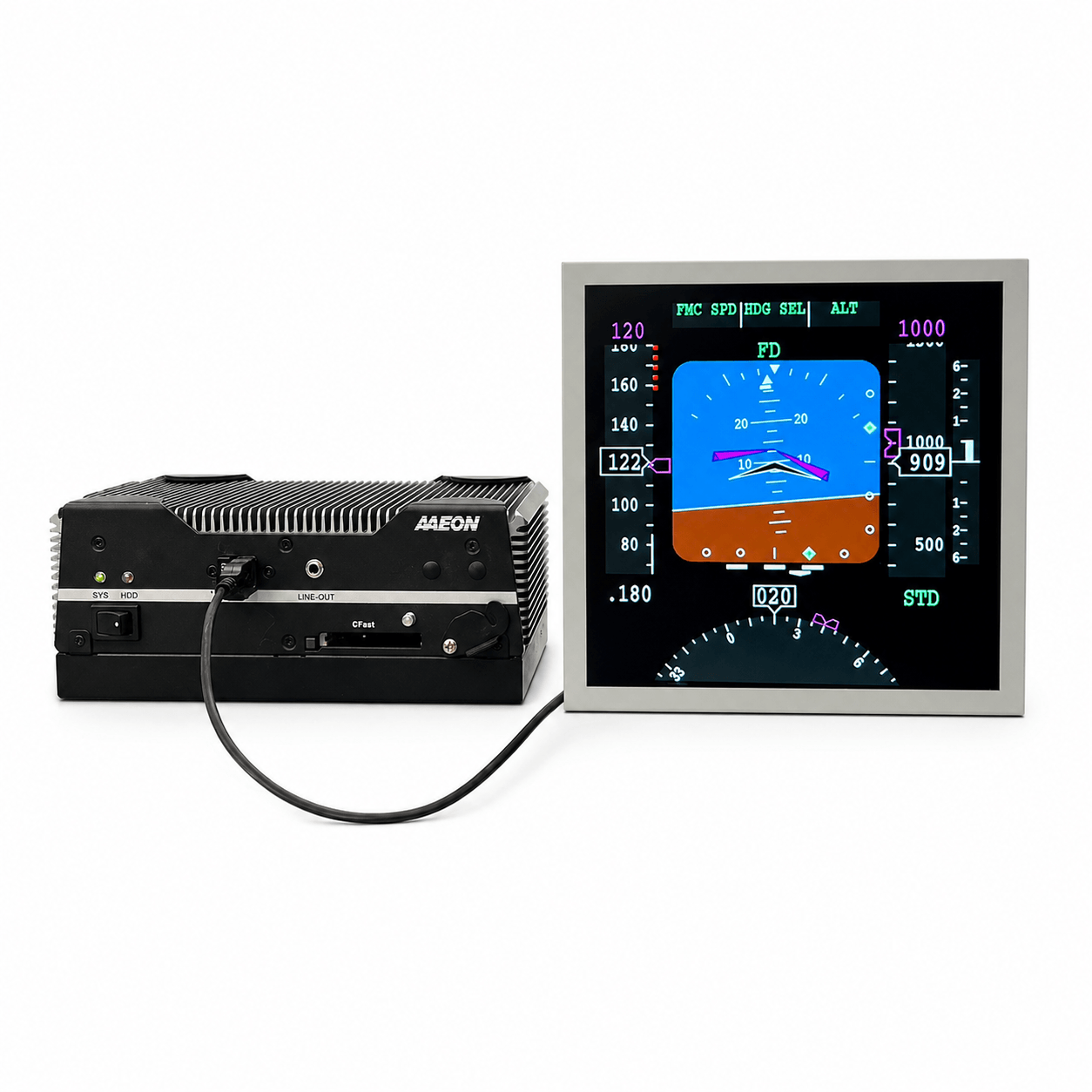

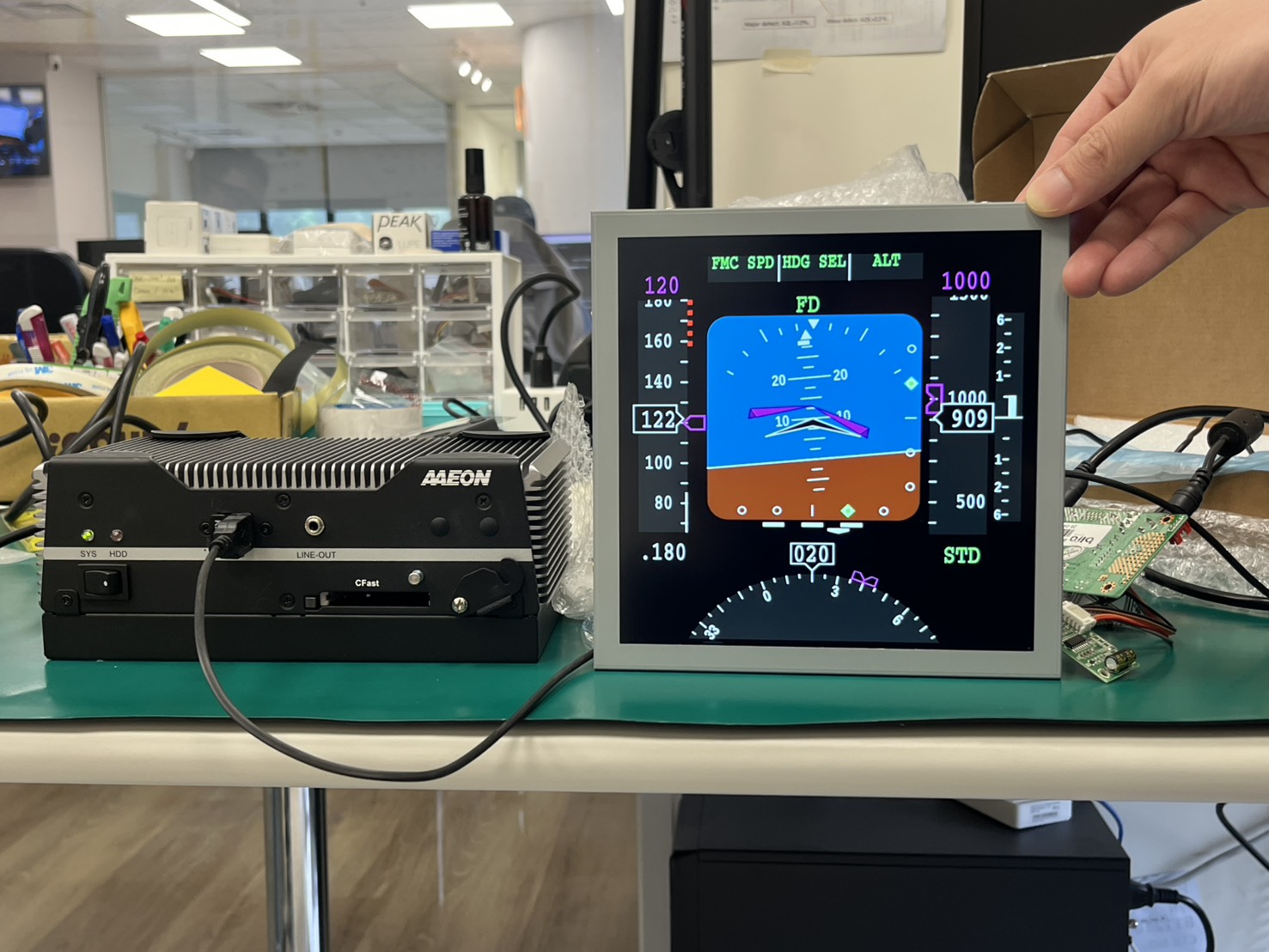

The PC2604-01 model is a 8.8" TFT-LCD IAV module with a white LED Backlight Unit and a 50-pin 1 ch-LVD interface. This module supports 960 x 1280 mode and displays 16.7M colors.
Description
| Item | Specification |
| Diagonal Size | 8.8 inch |
| Active Area | 158.4 mm(H) x 158.4 mm(V) |
| Bezel Opening Area | 181 X 181 mm |
| Driver Element | a-si TFT active matrix |
| Pixel Number | 960 x R.G.B. x 960 pixel |
| Pixel Pitch | 0.165 mm(H) x 0.165 mm(V) |
| Pixel Arrangement | RGB vertical stripe |
| Display Colors | 16.7M |
| Transmissive Mode | Normally black |
| Surface Treatment | Hard coating (3H), Anti-Glare |
| Module Power Consumption | 8.82 W |
